"VL" Series Vertical Layer Capacitors

Wire Bondable DC Decoupling Capacitors

Presidio Advantage

Vertical Layer Capacitor Diagram

CAPACITOR PERFORMANCE:  MVL3030X103MGH5N-* (Bond Wires Included)

Insertion Loss Data in Shunt

Insertion Loss Data in Shunt MAG S11 Chart

Insertion Loss Data in Shunt MAG S21 Chart

CAPACITOR PERFORMANCE:  MVL4080X104MGH5N-* (Bond Wires Included)

Capacitor Performace Chart for MLV4080 S11

Capacitor Performance Chart S21

Capacitor Environmental Parameters  Per Mil-C-49464/55681 (when specified)



Mil-Std-202

Conditions



Immersion:

104

B



Moisture Resistance:

106

-



Resistance to Solder Heat:

210

C



Thermal Shock:

107

A



100 Hour Voltage Conditioning:

108

A



2000 Hour Life Test:

108

A



Low Voltage Humidity:

103

A



Capacitor Mechanical Parameters

Bond Strength:

Mil-Std-883, Method 2011

Shear Strength:

Mil-Std-883, Method 2019

Metallization Thickness:

Minimum 100 microinches (2.5 micrometers)

  Page Up.

Global Part Number Example  (How To Order)

     M     VL   3030    X       103          M           G            H           5           N            -              A

Global Part Number Example

Capacitor Testing Codes

Presidio Components' quality system is ISO 9001 compliant and approved to Mil-I-45208 and Mil-Std-790

Code

Description

M

Industrial Rating; FIT Calculation Using 85°C Continuous Operating Temperature
Electrical: 100% capacitance, AQL Level II 1% per ANSI/ASQ Z1.4 for insulation resistance (IR) and dielectric withstanding voltage (DWV)
Visual: 100%, as per Mil-Std-883, Method 2032. Can be upgraded to Test Code H as per Mil-PRF-38534

H

Class H Element evaluation as per Mil-PRF-38534, Appendix C, Table C-III

K

High Reliability Testing (industrial part numbers cannot be upgraded)
Class K Element evaluation as per Mil-PRF-38534, Appendix C, Table C-III

D

Special Instructions or as per Customer Source Control Drawing

Capacitor Product Codes

VL

Vertical Layer Capacitor

Popular Capacitance Values, Case Sizes and Part Numbers

Industrial Rating

RoHS Compliant Capacitance + Tolerance Size Temperature Coefficient WVDC Global Part Numbers
No 10,000 pF ± 20% 3030 ± 15% 16 MVL3030X103MGH5N-*
Yes 10,000 pF ± 20% 3030 ± 15% 16 MVL3030X103MGH5R-*
No 10,000 pF ± 20% 4040 ± 15% 16 MVL4040X393MGH5N-*
Yes 100,000 pF -20%, +80% 3030 +22%, -82% 16 MVL3030Y104ZGH5R-*
No 100,000 pF ± 20% 3080 ± 15% 16 MVL3080X104MGH5N-*

* Insert Design-In code.

Space/Military Class K Rating

RoHS Compliant Capacitance + Tolerance Size Temperature Coefficient WVDC Global Part Numbers
No 10,000 pF ± 20% 4040 ± 15% 25 KVL4040X103M1H5N-*
No 100,000 pF ± 20% 5080 ± 15% 25 KVL5080X104M1H5N-*

* Insert Design-In code.

Capacitor Dielectric Material Code and Electrical Specifications

Material:

X7R

Y5V

Code:

X

Y

Dissipation Factor:

4.0% max.

12.5% max.

Insulation Resistance at 25°C:

> 105 MΩ

> 105 MΩ

Dielectric Withstanding Voltage:

2.5 times WVDC

2.5 times WVDC

Working Voltage (WVDC):

See capacitance table

16 VDC

Temperature Coefficient over Operating Temperature:

± 15%

+22%, -82%

Operating Temperature:

-55°C to +125°C

-30°C to +85°C

Aging Rate:

2.5% max. per decade/hour

5% per decade/hour

RoHS Compliant:



Yes

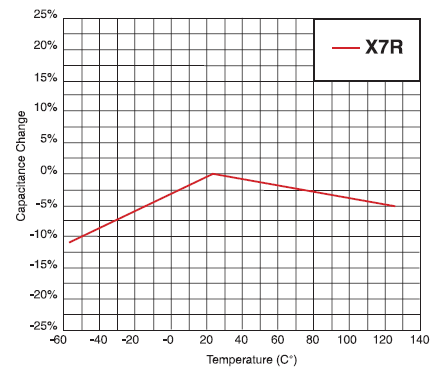

X7R Ceramic Capacitor Performance Chart

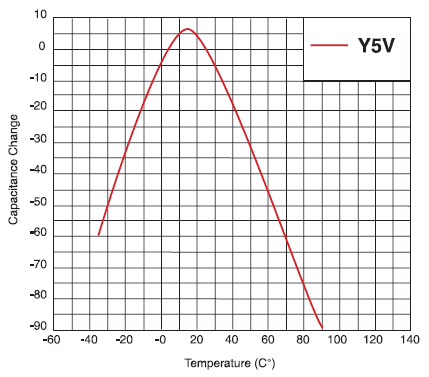

Y5V Ceramic Capacitor Performance Chart

  Page Up.

Capacitance Codes

First two digits

=

Significant figures of capacitance in picofarads.

Third digit

=

Additional number of zeros.

Example:



100 = 10 pF





102 = 1,000 pF





104 = 100,000 pF

Capacitance  (Industrial Rating)

Dielectric Material Temperature Coefficient D.W. VDC Working VDC Cap. Value (pF) Size
2020 3030 4040 3080 4080
X7R ± 15% 250 100 Max. 390 1,500 - - -
125 50 Max. 1,000 4,300 10,000 15,000 30,000
62.5 25 Max. 2,700 7,500 - - -
40 16 Max. 5,100 10,000 39,000 100,000 100,000
Y5V +22%, -82% 40 16 Max. - 100,000 - - -

Capacitance Tolerance Codes

Working Voltage  (WVDC)

Code

Tolerance

Code

WVDC

M

± 20%

G

16

Z

-20% / +80%

1

25





2

50





3

100

Termination Codes

Packaging Code

Code

Description

Code

Description

H

99.95% Au
For conductive epoxy.

5

Waffle Pack (standard)

K

99.95% Au Top / Pd/Ag Bottom
For conductive epoxy or solder.





RoHS Compliance Codes



Code

Compliant





N

No



R

Yes



  Page Up.

Capacitor Dimensions

Dimensions Diagram

Inches

Size L W T max. MB max.
2020 0.020 ± 0.003 0.020 ± 0.003 0.015 0.003
3030 0.030 ± 0.003 0.030 ± 0.003 0.022 0.005
4040 0.040 ± 0.005 0.040 ± 0.005 0.025 0.005
3080 0.030 ± 0.003 0.080 ± 0.005 0.025 0.005
4080 0.040 ± 0.004 0.083 ± 0.004 0.025 0.005
5080 0.050 ± 0.005 0.083 ± 0.004 0.025 0.005

Millimeters (for reference only)

Size L W T max. MB max.
2020 0.508 ± 0.076 0.508 ± 0.076 0.381 0.076
3030 0.762 ± 0.076 0.762 ± 0.076 0.559 0.127
4040 1.016 ± 0.127 1.016 ± 0.127 0.635 0.127
3080 0.762 ± 0.076 2.032 ± 0.127 0.635 0.127
4080 1.016 ± 0.102 2.108 ± 0.102 0.635 0.127
5080 1.270 ± 0.127 2.108 ± 0.102 0.635 0.127
