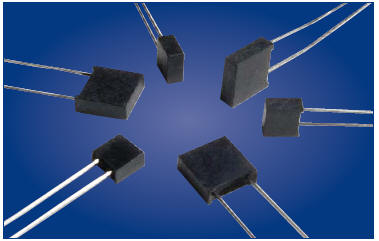

Temperature Compensating Ceramic Capacitors

Negative Temperature Coefficient (NTC) Radial Leaded

Specifications

Mechanical:

Case

DAP or molded high temperature Vectra

Leads

Solder coated copper clad steel is standard; other types available

Electrical:

Capacitance

1 MHz @ 25°C

Dissipation Factor

< .20% @ 1MHz @ 25°C

Insulation Resistance

> 7500 Megohms @ 25°C
> 1000 Megohms @ 125°C

Temperature Coefficients
Dielectric Type Negative Value PPM/°C Tolerance in PPM/°C
NPO 0 ± 30
N800T N80 ± 40
N151T N150 ± 40
N221T N220 ± 50
N331T N330 ± 50
N471T N470 ± 60
N751T N750 ± 100
N152T N1500 ± 250
N222T N2200 ± 250

Sizes

Case Code Length (L) Max Width (W) Max Thickness (T) Max Lead Space (LS) ± .030 Lead Diam. (LD) ± .002
RL15 .155 .155 .105 .100 .020
RL20 .200 .200 .100 .100 .020
RL30 .300 .300 .100 .200 .020

Maximum Capacitance Range *

Case 50V 100V 200V
RL15 2,200 pF 560 pF 220 pF
RL20 4,700 pF 1,200 pF 470 pF
RL30 12,000 pF 3,900 pF 1,000 pF

* Valid for any listed temperature coefficient

How To Order

The above example is of Presidio's Manufacturing part number.  If a shorter part number is desired, use our conversion tool to create our Global part number.
