High Voltage Stacked Capacitors
Presidio Common Sizes - X7R and NPO
Maximum Capacitance (μF)

PRESIDIO CASE SIZE “B” Ht. Max. inch (mm) No. of Cap per stack
Case Code 52 53 37 54 55 56 57 58
Dielectric X7R NPO X7R NPO X7R NPO X7R NPO X7R NPO X7R NPO X7R NPO X7R NPO
1000V (voltage code=9) .040 .0036 .080 .0075 .12 .010 .16 .014 .25 .022 .35 .030 .38 .033 .70 .060 .200
(5.08)		 1
.080 .0072 .16 .015 .24 .020 .32 .028 .50 .044 .70 .060 .76 .066 1.4 .12 .350
(8.89)		 2
.12 .011 .24 .022 .36 .030 .48 .042 .75 .066 .10 .090 1.1 .10 2.1 .18 .500
(12.70)		 3
.16 .014 .32 .030 .48 .040 .64 .056 1.0 .088 .14 .12 1.5 .13 2.8 .24 .650
(16.51)		 4
2000V (voltage code=11) .0080 .00075 .019 .0017 .027 .0024 .035 .0032 .055 .005 .080 .0070 .090 .0082 .17 .015 .200
(5.08)		 1
.016 .0015 .038 .0034 .054 .0048 .070 .0064 .11 .010 .16 .014 .18 .016 .34 .030 .350
(8.89)		 2
.024 .0022 .057 .0051 .081 .0072 .10 .0096 .16 .015 .24 .021 .27 .024 .51 .045 .500
(12.70)		 3
.032 .0030 .076 .0068 .10 .0096 .14 .013 .22 .020 .32 .028 .36 .033 .68 .060 .650
(16.51)		 4
3000V (voltage code=13) -- -- .0070 .00065 .011 .0010 .014 .0013 .022 .0021 .033 .0030 .039 .0035 .070 .0065 .200
(5.08)		 1
-- -- .014 .0013 .022 .0020 .024 .0026 .044 .0042 .066 .0060 .078 .0070 .14 .013 .350
(8.89)		 2
-- -- .021 .0019 .033 .0030 .042 .0039 .066 .0063 .10 .0090 .11 .010 .21 .019 .500
(12.70)		 3
-- -- .028 .0026 .044 .0040 .056 .0052 .088 .0084 .13 .012 .15 .014 .28 .026 .650
(16.51)		 4
4000V (voltage code=14) -- -- -- -- .0055 .00050 .007 .00060 .012 .0010 .017 .0015 .020 .0018 .039 .0035 .200
(5.08)		 1
-- -- -- -- .011 .0010 .014 .0012 .024 .0020 .034 .0030 .040 .0036 .078 .0070 .350
(8.89)		 2
-- -- -- -- .016 .0015 .021 .0018 .036 .0030 .051 .0045 .060 .0054 .11 .010 .500
(12.70)		 3
-- -- -- -- .022 .0020 .028 .0024 .048 .0040 .068 .0060 .080 .0072 .15 .014 .650
(16.51)		 4
5000V (voltage code=15) -- -- -- -- .0030 .00033 .0040 .00042 .0065 .00070 .0090 .0010 .011 .012 .022 .0024 .200
(5.08)		 1
-- -- -- -- .0060 .00066 .0080 .00084 .013 .0014 .018 .0020 .022 .024 .044 .0048 .350
(8.89)		 2
-- -- -- -- .0090 .0010 .012 .0012 .019 .0021 .027 .0030 .033 .036 .066 .0072 .500
(12.70)		 3
-- -- -- -- .012 .0013 .016 .0016 .026 .0028 .036 .0040 .044 .048 .088 .0096 .650
(16.51)		 4
Dimensions
inches
(mm)		 .300
(7.62)		 .415
(10.54)		 .550
(13.97)		 .500
(12.70)		 .600
(15.24)		 .700
(17.78)		 .975
(24.77)		 1.375
(34.93)		 C ± .025
(0.64)
.260
(6.60)		 .350
(8.89)		 .320
(8.13)		 .460
(11.68)		 .560
(14.22)		 .660
(16.76)		 .520
(13.21)		 .670
(17.02)		 D (Max.) Width
.325
(8.26)		 .440
(11.18)		 .580
(14.73)		 .525
(13.34)		 .625
(15.88)		 .725
(18.42)		 1.000
(25.40)		 1.400
(35.56)		 E (Max.) Length
Leads per Side 3 4 3 4 5 6 5 6
Chip Size 2824 3933 5330 4844 5854 6864 9650 13565


Presidio Lead Style and Dimensions

N Style
Through-hole straight leads
inches (mm)

J and K Style
Leads bent under device
inches (mm)

L and M Style
Leads bent away from device
inches (mm)

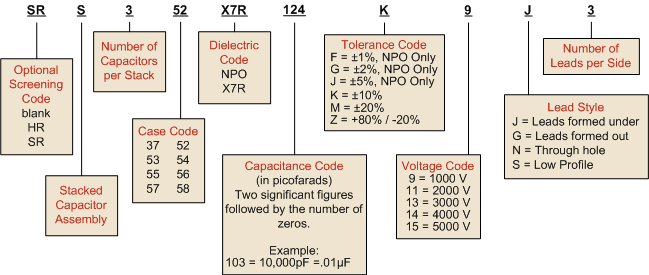

How To Order

sample part number


Consult factory for other voltages, capacitance options and parts outside a given range.

The above example is of Presidio's Manufacturing part number.

If a shorter part number is desired, use our conversion tool to create our Global part number.
