Global Part Number Example |
|
L
S
A
1515
B
101
M
3
H
5
R
-
A |
 |
|
Testing Codes |
|
Presidio Components' quality system is ISO 9001 compliant and approved to Mil-I-45208 and
Mil-Std-790. |
Code |
Description |
L |
Industrial Rating, 65°C Continuous Operating Temperature
Electrical: 100% capacitance and dissipation factor (DF), AQL Level II 1% per ANSI/ASQ Z1.4 for insulation resistance (IR) and dielectric withstanding voltage (DWV)
Visual:100%, as per Mil-Std-883, Method 2032
Can be upgraded to test code H as per Mil-PRF-38534 |
M |
Military Rating, 85°C Continuous Operating Temperature
Electrical and visual testing same as L code
Can be upgraded to test codes H and K as per Mil-PRF-38534, and as per Mil-PRF-49464/B, Group A and B testing @ 125°C |
N |
Space/Military Rating, 100°C Continuous Operating Temperature
Electrical and visual testing same as L code except 100% insulation resistance and dielectric withstanding voltage
Can be upgraded to test codes H and K as per Mil-PRF-38534, and as per Mil-PRF-49464/B, Group A and B testing |
|
MIL-PRF-38534E |
H |
Class H element evaluation (electrical, visual, wire bond) |
K |
Class K element evaluation (electrical*, visual, temperature cycling, voltage conditioning, constant acceleration, wire bond) |
|
High Reliability Testing as per Mil-C-49464A/B
Modified Moisture Resistance Test not Included |
A |
Group A, subgroups 1,2,3,4 (100% thermal shock and voltage conditioning, visual mechanical, bond & die shear, temperature coefficient) |
B |
Group B, subgroups 1,2,3,4 (temperature coefficient and immersion, resistance to soldering heat, humidity, steady state, low voltage, 2000 hours life test) |
D |
Special Instructions or as per Customer Source Control Drawing |
* |
Note: Includes 100% testing: Capacitance, Dissipation Factor, Insulation Resistance and Dielectric Withstanding Voltage |
|
 Page Up.
Product Code |
S |
Buried Single Layer™ Ceramic Capacitor |
|
Termination Configuration Codes |
A |
Borders top and bottom |
B |
Borders top, full metallization at bottom |
C |
Full metallization top and bottom |
|
A |
B |
C |
|
|
|
|
|
Standard |
High Reliability AuSn |
Millimeterwave |
|
Page Up.
Size Codes |
|
| Inches |
| Size |
Width |
Tolerance |
Thickness |
Tolerance |
Nominal P |
Minimum B |
| 1010 |
0.010 |
±0.002 |
0.005 |
±0.002 |
0.007 |
0.0005 |
| 1212 |
0.012 |
±0.002 |
0.005 |
±0.002 |
0.009 |
0.0005 |
| 1515 |
0.015 |
±0.002 |
0.005 |
±0.002 |
0.011 |
0.001 |
| 1717 |
0.017 |
±0.002 |
0.005 |
±0.002 |
0.013 |
0.001 |
| 2020 |
0.020 |
±0.002 |
0.005 |
±0.002 |
0.016 |
0.001 |
| 2222 |
0.022 |
±0.002 |
0.005 |
±0.002 |
0.018 |
0.001 |
| 2525 |
0.025 |
±0.002 |
0.005 |
±0.002 |
0.021 |
0.001 |
| 2727 |
0.027 |
±0.002 |
0.005 |
±0.002 |
0.023 |
0.001 |
| 3030 |
0.030 |
±0.002 |
0.005 |
±0.002 |
0.026 |
0.001 |
| 3535 |
0.035 |
±0.005 |
0.005 |
±0.002 |
0.031 |
0.001 |
|
| |
| Millimeters (reference only) |
| Size |
Width |
Tolerance |
Thickness |
Tolerance |
Nominal P |
Minimum B |
| 1010 |
0.254 |
±0.051 |
0.127 |
±0.051 |
0.178 |
0.013 |
| 1212 |
0.305 |
±0.051 |
0.127 |
±0.051 |
0.229 |
0.013 |
| 1515 |
0.381 |
±0.051 |
0.127 |
±0.051 |
0.279 |
0.025 |
| 1717 |
0.432 |
±0.051 |
0.127 |
±0.051 |
0.330 |
0.025 |
| 2020 |
0.508 |
±0.051 |
0.127 |
±0.051 |
0.406 |
0.025 |
| 2222 |
0.559 |
±0.051 |
0.127 |
±0.051 |
0.457 |
0.025 |
| 2525 |
0.635 |
±0.051 |
0.127 |
±0.051 |
0.533 |
0.025 |
| 2727 |
0.686 |
±0.051 |
0.127 |
±0.051 |
0.584 |
0.025 |
| 3030 |
0.762 |
±0.051 |
0.127 |
±0.051 |
0.660 |
0.025 |
| 3535 |
0.889 |
±0.127 |
0.127 |
±0.051 |
0.787 |
0.025 |
|
Maximum thickness limits may not apply for values below 1.0 pF |
|
Page Up.

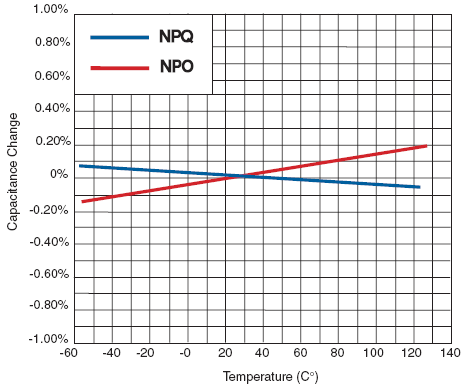

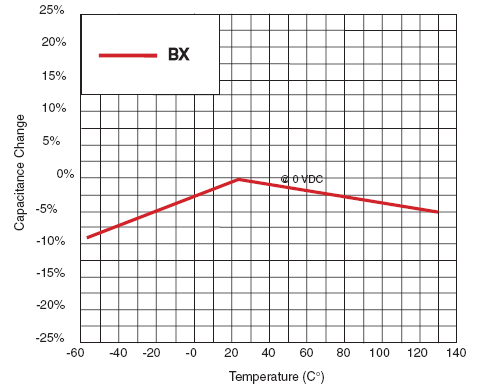

Dielectric Material Codes and Electrical Specifications |
Dielectric
Code |
Global Part Code |
Relative
Er at
1 MHz |
Temperature
Coefficient
-55°C to +125°C |
Maximum
Dissipation
Factor |
Insulation
Resistance
at 25°C |
Dielectric
Withstanding
Voltage |
| NPQ |
Q |
27 |
0 ± 25 ppm |
0.1% |
> 105MΩ |
2.5 times
working voltage
DC |
| NPO |
N |
85 |
0 ± 30 ppm |
0.15% |
> 105MΩ |
| BX |
B |
2600 |
± 15% |
2.5%, 3.5%, 5.0%* |
> 105MΩ |
|
Aging Rate: BX material only = 2.5% max per decade hour
All testing as per Mil-C-49464/B with the exception of moisture resistance, unless otherwise specified
* Voltage ratings applicable to: 2.5% = 100V and 50V, 3.5% = 25V and 16V, 5.0% = 10V |
|
|
|
Page Up.
Capacitance Codes |
First two digits |
= |
Significant figures of capacitance in picofarads. |
Third digit |
= |
Additional number of zeros. |
Example: |
|
0R1 = 0.1 pF |
|
|
1R0 = 1.0 pF |
|
|
100 = 10 pF |
|
|
101 = 100 pF |
|
|
Capacitance Tolerance Codes |
| Code |
Tolerance |
Cap Range |
Dielectrics |
| A |
± .05 pF |
< 2.2 pF |
NPQ, NPO |
| B |
± .1 pF |
< 10 pF |
NPQ, NPO |
| C |
± .25 pF |
< 10 pF |
NPQ, NPO |
| D |
± .5 pF |
< 10 pF |
NPQ, NPO |
| G |
± 2% |
> 9.1 pF |
NPQ, NPO |
| J |
± 5% |
> 9.1 pF |
NPQ, NPO |
| K |
± 10% |
> 0.45 pF |
all |
| M |
± 20% |
> 0.45 pF |
all |
| P |
+ 100, - 0% |
> 0.45 pF |
all |
|
|
* Does not apply for the highest cap value per case size and voltage rating. |
|
Working Voltage Codes |
| Code |
WVDC |
| 3 |
100 |
| 2 |
50 |
| 1 |
25 |
| G |
16 |
| E |
10 |
|
See standard available capacitance values and voltage ratings on our Applications page.
Contact Presidio Components for higher and lower voltage ratings. |
|
Termination Codes |
| Code |
Material |
Thickness |
Wire |
Attachment |
| H |
99.95% Au |
100 microinches minimum |
Au |
Conductive Epoxy or AuSn |
| J |
99% Au Alloy |
Al or Au |
|
|
Packaging Codes |
| Code |
Description |
| 5 |
Waffle Pack (400 max/waffle pack) |
| F |
Grip Ring (blue tape) |
| 1 |
Tape and Reel (minimum size 2020) |
|
|
RoHS Compliance Codes |
| Code |
Compliant |
| N |
No |
| R |
Yes |
|
|
Design-In Codes |
How to Order datasheet in PDF format (old version).
