Applications:
- Industrial
- Military
- Space
Features:
- Low Center of Gravity
- Excellent thermal coefficient of
expansion compliance with board
- Tested to 49470
- Available in most chip sizes
Ceramic Type:
|
 |
|
|
Top View |
End View |
|
|
|
|

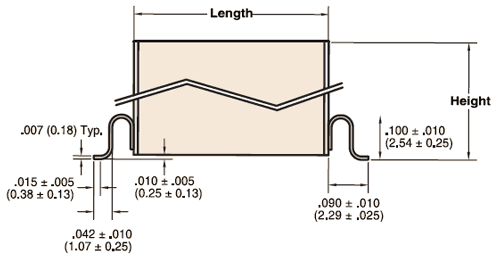

Side View |
|
|
|
|
Low Standoff Comparison |
MIL-PRF-49470
Standard 'J' Lead Style |
MIL-PRF-49470
Standard 'K' Lead Style |
MIL-PRF-49470
Low Profile 'S' Lead Style |
|
|
|
|
MIL-PRF-49470 Style Case Sizes
Maximum Capacitance |
| 49470 Case Size |
Style 5 |
Style 4 |
Style 3 |
Height B
inches (mm) |
# of Chips (per stack) |
| Presidio Case Size |
01 |
05 |
13 |
| Dielectric |
BX/BR/BQ
(µF) |
BP
(µF) |
BX/BR/BQ
(µF) |
BP
(µF) |
BX/BR/BQ
(µF) |
BP
(µF) |
50V
(BX) |
1.2 |
0.056 |
3.0 |
0.12 |
10 |
0.39 |
0.135 (3.43) |
1 |
| 2.2 |
0.10 |
6.0 |
0.27 |
18 |
0.82 |
0.255 (6.48) |
2 |
| 3.3 |
0.15 |
8.2 |
0.33 |
33 |
1.2 |
0.375 (9.53) |
3 |
| -- |
-- |
12 |
0.47 |
39 |
1.8 |
0.495 (12.57) |
4 |
| -- |
-- |
15 |
0.56 |
47 |
2.2 |
0.665 (16.89) |
5 |
100V
(BX) |
0.68 |
0.039 |
105 |
0.10 |
5.6 |
0.33 |
0.135 (3.43) |
1 |
| 1.2 |
0.082 |
2.7 |
0.22 |
12 |
0.68 |
0.255 (6.48) |
2 |
| 1.8 |
0.12 |
4.7 |
0.27 |
18 |
1.0 |
0.375 (9.53) |
3 |
| -- |
-- |
6.8 |
0.39 |
22 |
1.5 |
0.495 (12.57) |
4 |
| -- |
-- |
8.2 |
0.56 |
27 |
1.8 |
0.665 (16.89) |
5 |
200V
(BR) |
0.27 |
0.022 |
0.68 |
0.068 |
2.7 |
0.18 |
0.135 (3.43) |
1 |
| 0.56 |
0.039 |
1.5 |
0.10 |
5.6 |
0.39 |
0.255 (6.48) |
2 |
| 0.82 |
0.056 |
2.2 |
0.15 |
8.2 |
0.56 |
0.375 (9.53) |
3 |
| -- |
-- |
3.3 |
0.22 |
10 |
0.68 |
0.495 (12.57) |
4 |
| -- |
-- |
3.9 |
0.27 |
12 |
1.0 |
0.665 (16.89) |
5 |
500V
(BQ) |
0.15 |
0.010 |
0.39 |
0.022 |
1.0 |
0.082 |
0.135 (3.43) |
1 |
| 0.27 |
0.018 |
0.68 |
0.039 |
2.2 |
0.18 |
0.255 (6.48) |
2 |
| 0.47 |
0.027 |
1.2 |
0.068 |
3.9 |
0.27 |
0.375 (9.53) |
3 |
| -- |
-- |
1.5 |
0.10 |
4.7 |
0.33 |
0.495 (12.57) |
4 |
| -- |
-- |
1.8 |
0.12 |
5.6 |
0.39 |
0.665 (16.89) |
5 |
C ± .025 inch
(± .64 mm) |
0.250 (6.35) |
0.400 (10.16) |
0.450 (11.43) |
|
D Max.
inches (mm) |
0.275 (6.99) |
0.425 (10.80) |
1.075 (27.31) |
E Max.
inches (mm) |
0.300 (7.62) |
0.440 (11.18) |
1.075 (27.31) |
| Leads per Side |
1 |
2 |
5 |
|
Presidio Case Sizes
X7R and NPO Dielectric
Maximum Capacitance |
| Presidio Case Size |
01 |
05 |
13 |
Height B
inches (mm) |
# of Chips (per stack) |
| Chip Size |
2627 |
3941 |
4399 |
| Dielectric |
X7R (µF) |
NPO (µF) |
X7R (µF) |
NPO (µF) |
X7R (µF) |
NPO (µF) |
| 25V |
2.5 |
0.065 |
7.0 |
0.16 |
20 |
0.5 |
0.110 (2.79) |
1 |
| 5.0 |
0.13 |
14 |
0.32 |
40 |
1.0 |
0.160 (4.06) |
2 |
| 7.5 |
0.19 |
21 |
0.48 |
60 |
1.5 |
0.235 (5.97) |
3 |
| 10 |
0.26 |
28 |
0.64 |
80 |
2.0 |
0.310 (7.87) |
4 |
| -- |
-- |
35 |
0.80 |
100 |
2.5 |
0.385 (9.78) |
5 |
| -- |
-- |
42 |
0.96 |
120 |
3.0 |
0.460 (11.68) |
6 |
| 50V |
2.1 |
0.055 |
5.6 |
0.14 |
18 |
0.4 |
0.110 (2.79) |
1 |
| 4.2 |
0.11 |
11 |
0.28 |
36 |
0.8 |
0.180 (4.57) |
2 |
| 6.3 |
0.16 |
17 |
0.42 |
54 |
1.2 |
0.270 (6.86) |
3 |
| 8.4 |
0.22 |
22 |
0.56 |
72 |
1.6 |
0.360 (9.14) |
4 |
| -- |
-- |
28 |
0.70 |
90 |
2.0 |
0.450 (11.43) |
5 |
| -- |
-- |
33 |
0.84 |
110 |
2.4 |
0.540 (13.72) |
6 |
| 100V |
1.4 |
0.04 |
4.0 |
0.10 |
12 |
0.3 |
0.120 (3.05) |
1 |
| 2.8 |
0.08 |
8.0 |
0.20 |
24 |
0.6 |
0.240 (6.10) |
2 |
| 4.2 |
0.12 |
12 |
0.30 |
36 |
0.9 |
0.360 (9.14) |
3 |
| -- |
-- |
16 |
0.40 |
48 |
1.2 |
0.480 (12.19) |
4 |
| -- |
-- |
20 |
0.50 |
60 |
1.5 |
0.600 (15.24) |
5 |
| -- |
-- |
-- |
-- |
72 |
1.8 |
0.720 (18.29) |
6 |
| 200V |
0.42 |
0.022 |
1.2 |
0.056 |
3.5 |
0.18 |
0.120 (3.05) |
1 |
| 0.84 |
0.044 |
204 |
0.11 |
7.0 |
0.36 |
0.240 (6.10) |
2 |
| 1.2 |
0.066 |
3.6 |
0.17 |
10 |
0.54 |
0.360 (9.14) |
3 |
| -- |
-- |
4.8 |
0.22 |
14 |
0.72 |
0.480 (12.19) |
4 |
| -- |
-- |
6.0 |
0.28 |
17 |
0.90 |
0.600 (15.24) |
5 |
| -- |
-- |
-- |
-- |
21 |
1.10 |
0.720 (18.29) |
6 |
| 500V |
0.19 |
0.011 |
0.55 |
0.028 |
1.6 |
0.08 |
0.120 (3.05) |
1 |
| 0.38 |
0.022 |
1.1 |
0.056 |
3.2 |
0.16 |
0.240 (6.10) |
2 |
| 0.57 |
0.033 |
1.6 |
0.084 |
4.8 |
0.24 |
0.360 (9.14) |
3 |
| -- |
-- |
2.2 |
0.11 |
6.4 |
0.32 |
0.480 (12.19) |
4 |
| -- |
-- |
2.7 |
0.14 |
8.0 |
0.40 |
0.600 (15.24) |
5 |
| -- |
-- |
-- |
-- |
9.6 |
0.48 |
0.720 (18.29) |
6 |
C ± .025 inch
(± .64 mm) |
0.275 (6.99) |
0.400 (10.16) |
0.450 (11.43) |
Height dimensions based on commonly ordered parts. Custom heights available. |
D Max.
inches (mm) |
0.275 (6.99) |
0.425 (10.80) |
1.075 (27.31) |
E Max.
inches (mm) |
0.300 (7.62) |
0.440 (11.18) |
0.500 (12.70) |
| Leads per Side |
1 |
2 |
5 |
|
Notes:
1. 75V parts are also available. Capacitance values of 75V parts are half-way between 50V and 100V.
2. Other sizes and capacitance values available. Consult factory.
|

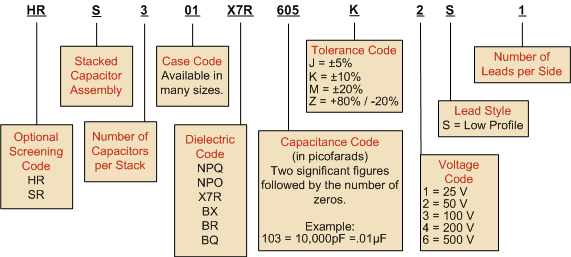

How To Order
Consult factory for other voltages, capacitance options and parts outside a given range.
The above example is of Presidio's Manufacturing part number.
If a shorter part number is desired, use our conversion tool to create our Global part number. |
