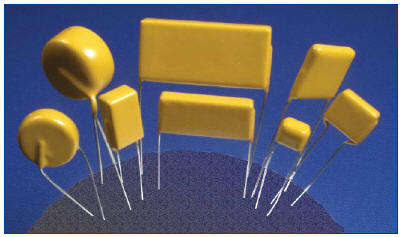

High Voltage Radial Leaded Capacitors

X7R and NPO Dielectric
Epoxy Coated and Uncoated Radial Leaded Capacitors

Specifications

Operating Temperature Range:

  • -55°C to +125°C

  • High Temperature to 250°C available

Temperature Coefficient:

  • X7R:  ±15% ΔC

  • NPO:  ±30 ppm/°C max.

Dissipation Factor:

  • X7R:  2.5% max.

  • NPO:  < .0015 (.15%)

Insulation Resistance:

  • X7R/NPO:  1000 ohms x Farad or 100 Gigohms, whichever is less

Maximum Capacitance (µF)
SIZE 50V 100V 200V 500V 1000V 2000V 3000V 4000V 5000V
X7R NPO X7R NPO X7R NPO X7R NPO X7R NPO X7R NPO X7R NPO X7R NPO X7R NPO
RL1814 .80 .018 .42 .012 .18 .0075 .075 .0035 .012 .0010 -- -- -- -- -- -- -- --
RL1824 1.4 .033 .90 .024 .35 .014 .15 .0068 .024 .0020 -- -- -- -- -- -- -- --
RL2225 1.9 .047 1.2 .033 .47 .020 .20 .0090 .032 .0027 .0060 .00050 -- -- -- -- -- --
RL2824 2.2 .056 1.5 .040 .58 .022 .25 .011 .040 .0036 .0080 .00075 .0033 .00025 -- -- -- --
RL3933 4.7 .12 3.0 .085 1.2 .050 .50 .024 .080 .0075 .019 .0017 .0082 .00065 .0039 .00030 -- --
RL4844 8.2 .20 5.6 .14 1.9 .082 .82 .039 .16 .014 .035 .0032 .015 .0013 .0082 .00060 .0056 .00042
RL5854 12 .30 8.2 .21 3.0 .12 1.2 .060 .25 .022 .055 .0050 .027 .0021 .015 .0010 .0082 .00070
RL6864 18 .44 12 .31 4.5 .18 1.8 .085 .35 .030 .082 .0070 .039 .0030 .018 .0015 .012 .0010
RL9650 19 .47 12 .34 .50 .20 2.0 .095 .39 .033 .10 .0082 .047 .0035 .022 .0018 .015 .0012
RL13565 -- -- -- -- 9.0 .36 3.9 .17 .70 .060 .18 .015 .082 .0065 .047 .0035 .033 .0024

Note: Other sizes and voltages are available. Consult factory for details.

Dimensions
SIZE L
(Max.)		 W
(Max.)		 T
(Max.)		 LL
(Max.)		 LS
(Max.)		 LD
(Max.)		 M
(Max.)
RL1814 0.300 0.200 0.200 1.000 0.200 0.025 0.060
RL1824 0.300 0.300 0.200 1.000 0.200 0.025 0.060
RL2225 0.350 0.300 0.200 1.000 0.250 0.025 0.060
RL2824 0.400 0.300 0.200 1.000 0.300 0.025 0.060
RL3933 0.500 0.400 0.200 1.000 0.400 0.025 0.060
RL4844 0.600 0.500 0.200 1.000 0.500 0.025 0.060
RL5854 0.700 0.600 0.200 1.000 0.600 0.025 0.060
RL6864 0.800 0.700 0.200 1.000 0.700 0.025 0.060
RL9650 1.100 0.600 0.200 1.000 0.980 0.025 0.060
RL13565 1.450 0.720 0.200 1.000 1.375 0.025 0.060

Note:  Dimensions are in inches.

How To Order

The above example is of Presidio's Manufacturing part number.  If a shorter part number is desired, use our conversion tool to create our Global part number.
