Radial Leaded High Frequency - High Power Capacitors

Type N2200 Dielectric
For AC Line Filtering or High Power RF Applications

Specifications

 Radial Leaded high frequency high power ceramic capacitors

Applications:

  • AC line filtering, typically from 110-230 volts AC, 80 to 400 Hz

  • High power RF at high voltages: 500 volts to 5,000 volts

Features:

  • Low dissipation factor (DF)

  • Low self-heating

  • Low ESR over a wide frequency range

  • High reliability

  • Stable capacitance vs. frequency

  • No aging rate

Ceramic Type:

This ceramic is a Type N2200, NTC dielectric. Its advantage is that it combines the high K of an X7R dielectric with the stability of an NPO dielectric. Temperature Coefficient: -2200ppm/C typical.

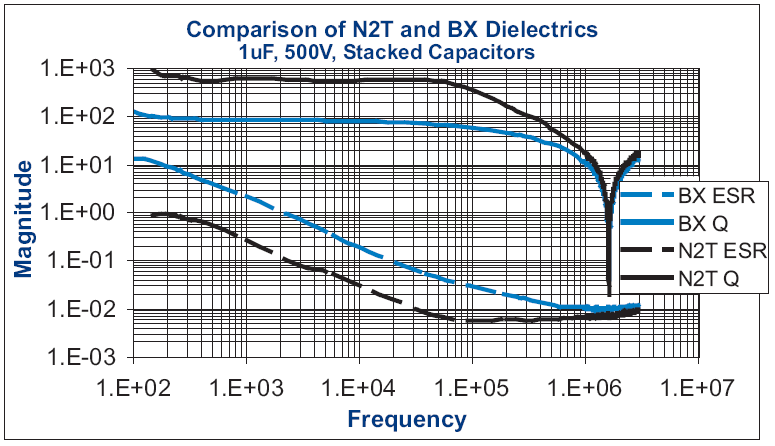

Radial Leaded Magnitude vs frequency, N2T and BX dielectric capacitors

Popular Part Numbers
Capacitance Voltage Part Number
.068 µF 500 V   RL2422N2T683K6E250
.330 µF 500 V   RL3941N2T334K6E400
1 µF 500 V   S305N2T105K6N4
.050 µF 1000 V   RL3736N2T503K9E375
.015 µF 5000 V   RL8557N2T153K15E850

Capacitors available as radial leaded or stacked
Other sizes available (consult factory)

Radial Leaded capacitance vs temperature capacitance chart

Radial Leaded typical voltage coefficient, capacitance chart

Radial Leaded DF vs frequency chart

radial leaded DF vs temperature performance chart

How To Order

Please consult factory with your requirements.
We will direct you to the closest available part.
