ESR and ESL Measurements of
MVL3030Y 100nF Vertical Layer Capacitors
  • Measurements were made from 1MHz to 1.0GHz using an HP 4291 Impedance Analyzer using the 16192A test fixture.
  • The below plots will show ESR, "ESL effective" and "ESL calculated" where ESL calculated is the extracted inductance of the capacitor based off a simple RLC model. ESL effective is the reading taken directly from the impedance analyzer and assumes a simple RL (series R-L) model (i.e. the imaginary part of the measured impedance is assumed to represent a pure inductance).
ESR and ESL ceramic capacitor performance chart

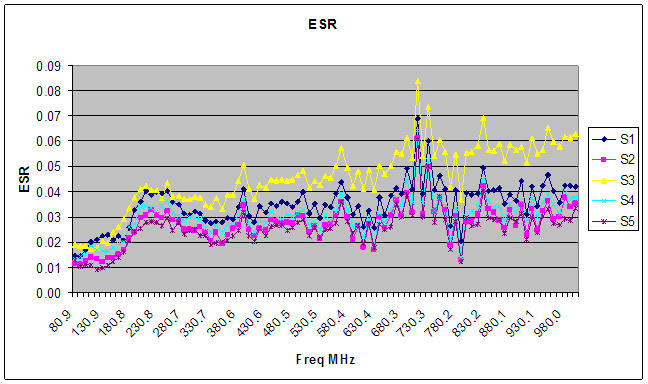

Measured ESR for MVL3030Y 100nF Vertical Layer Capacitor. Five samples.
ESR and ESL ceramic capacitor performance chart

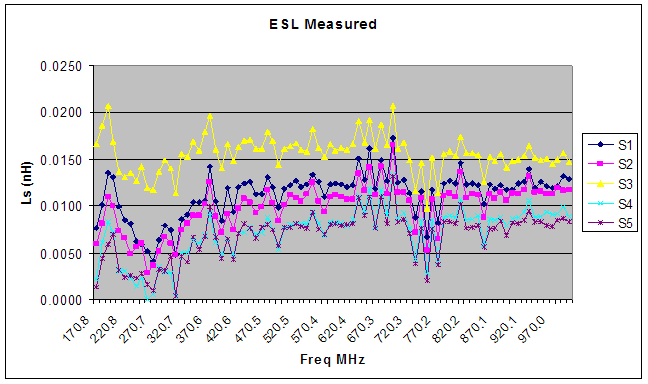

Measured ESL for MVL3030Y 100nF Vertical Layer Capacitor. Five samples.
ESR and ESL ceramic capacitor performance chart

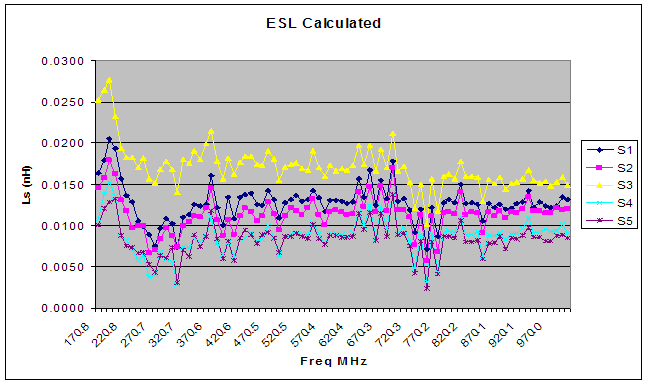

Calculated ESL for MVL3030Y 100nF Vertical Layer Capacitor. Five samples.
