Low Inductance Capacitors

In high speed switching applications where the inductance of a traditional form factor impairs the performance of the circuit, Presidio recommends its low inductance capacitors. The inductance of this form factor is approximatelyone half of its counterpart. For example, the inductance of the 0508 is half that of the 0805.
Size L
inches (mm)		 W
inches
(mm)		 Thickness Max. (T) inches (mm) Metallization Band (M.B.) inches (mm) WVDC Dielectric
X7R Y5V
0306 0.032 (0.81)
±
0.008 (0.15)		 0.063 (1.60)
±
0.008 (0.15)		 0.024
(0.61)		 0.005 (0.13) min 10 V 0.10 µF 0.27 µF
16 V 0.047 µF 0.15 µF
25 V 0.039 µF 0.10 µF
50 V 0.018 µF 0.047 µF
0508 0.050 (1.27)
±
0.010 (0.25)		 0.080 (2.03)
±
0.010 (0.25)		 0.030
(0.76)		 0.005 (0.13) min 10 V 0.22 µF 0.68 µF
16 V 0.12 µF 0.33 µF
25 V 0.10 µF 0.27 µF
50 V 0.047 µF 0.12 µF
0508 0.050 (1.27)
±
0.010 (0.25)		 0.080 (2.03)
±
0.010 (0.25)		 0.040
(1.02)		 0.005 (0.13) min 10 V 0.27 µF 0.82 µF
16 V 0.18 µF 0.56 µF
25 V 0.15 µF 0.39 µF
50 V 0.068 µF 0.18 µF
0612 0.063 (1.60)
±
0.010 (0.25)		 0.126 (3.20)
±
0.010 (0.25)		 0.030
(0.76)		 0.005 (0.13) min 10 V 0.47 µF 1.2 µF
16 V 0.22 µF 0.56 µF
25 V 0.18 µF 0.47 µF
50 V 0.082 µF 0.22 µF
0612 0.063 (1.60)
±
0.010 (0.25)		 0.126 (3.20)
±
0.010 (0.25)		 0.040
(1.02)		 0.005 (0.13) min 10 V 0.56 µF 1.5 µF
16 V 0.33 µF 1.0 µF
25 V 0.27 µF 0.68 µF
50 V 0.12 µF 0.33 µF
1725 0.175 (4.45)
±
0.010 (0.25)		 0.250 (6.35)
±
0.010 (0.25)		 0.080
(2.03)		 0.010 (0.25) min 10 V 4.7 µF 12.0 µF
16 V 3.3 µF 10.0 µF
25 V 2.7 µF 8.2 µF
50 V 2.2 µF 5.8 µF

Dimensions

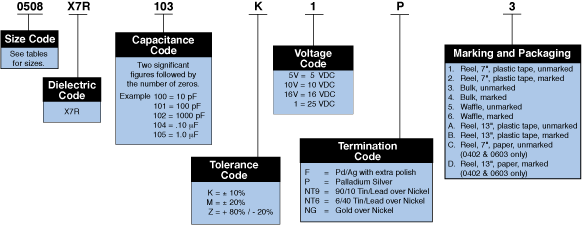

How To Order


Consult factory for other voltages, capacitance options and parts outside a given range.

The above example is of Presidio's Manufacturing part number.
If a shorter part number is desired, use our conversion tool to create our Global part number.
