High Voltage Capacitors

For use in high reliability high voltage applications, Presidio recommends its high voltage "HV" capacitors. Available screened to the requirements of MIL-PRF-49467, the high voltage parts may require encapsulation to prevent surface breakdown.
Size L
inches (mm)		 W
inches
(mm)		 Thickness Max. (T) inches (mm) Metallization Band (M.B.) inches (mm) WVDC Dielectric
NPO X7R
1209 0.125 (3.18)
±
0.010 (0.25)		 0.095 (2.41)
±
0.010 (0.25)		 0.080
(2.03)		 0.020
(0.51)
±
0.010
(0.25)		 500 V 2700 pF 0.022 µF
1000 V 390 pF 1800 pF
1514 0.150 (3.81)
±
0.010 (0.25)		 0.140 (3.56)
±
0.010 (0.25)		 0.140
(3.56)		 0.020
(0.51)
±
0.010
(0.25)		 500 V 3900 pF 0.039 µF
1000 V 1800 pF 0.01 µF
2000 V 390 pF 1800 pF
3000 V 150 pF 820 pF
1812 0.180 (4.57)
±
0.020 (0.51)		 0.160 (4.06) max. 0.120
(3.05)		 0.020
(0.51)
±
0.010
(0.25)		 500 V 6800 pF 0.068 µF
1000 V 2200 pF 0.015 µF
2000 V 270 pF 1800 pF
3000 V 120 pF 390 pF
1825 0.180 (4.57)
±
0.020 (0.51)		 0.250 (6.35) max. 0.160
(4.06)		 0.020
(0.51)
±
0.010
(0.25)		 500 V 0.012 µF 0.15 µF
1000 V 5600 pF 0.027 µF
2000 V 1000 pF 6800 pF
3000 V 470 pF 1800 pF
1918 0.190 (4.83)
±
0.013 (0.33)		 0.180
(4.57)
±
0.013
(0.33)		 0.150
(3.81)		 0.020
(0.51)
±
0.010
(0.25)		 500 V 8200 pF 0.082 µF
1000 V 3900 pF 0.022 µF
2000 V 820 pF 4700 pF
3000 V 330 pF 1800 pF
2225 0.230 (5.84)
±
0.020 (0.51)		 0.250 (6.35) max. 0.200
(5.08)		 0.020
(0.51)
±
0.010
(0.25)		 500 V 0.015 µF 0.39 µF
1000 V 6800 pF 0.068 µF
2000 V 1500 pF 0.012 µF
3000 V 560 pF 3900 pF
2720 0.270 (6.85)
±
0.020 (0.51)		 0.230 (5.84) max. 0.200
(5.08)		 0.020
(0.51)
±
0.010
(0.25)		 500 V 0.012 µF 0.1 µF
1000 V 5600 pF 0.027 µF
2000 V 1500 pF 6800 pF
3000 V 560 pF 3300 pF
2824 0.280 (7.11)
±
0.020 (0.51)		 0.250 (6.35) max. 0.150
(3.81)		 0.020
(0.51)
±
0.010
(0.25)		 500 V 0.022 µF 0.22 µF
1000 V 8200 pF 0.047 µF
2000 V 1800 pF 0.01 µF
3000 V 820 pF 3300 pF
3012 0.300 (7.62)
±
0.020 (0.51)		 0.150 (3.81) max. 0.150
(3.81)		 0.020
(0.51)
±
0.010
(0.25)		 500 V 0.012 µF 0.082 µF
1000 V 5600 pF 0.018 µF
2000 V 560 pF 3300 pF
3000 V 390 pF 1200 pF
3728 0.370 (9.40)
±
0.020 (0.51)		 0.330 (8.38) max. 0.220
(5.59)		 0.020
(0.51)
±
0.010
(0.25)		 500 V 0.033 µF 0.27 µF
1000 V 0.018 µF 0.082 µF
2000 V 2700 pF 0.015 µF
3000 V 1800 pF 5600 pF
4000 V 680 pF 3300 pF
3933 0.380 (9.65)
±
0.020 (0.51)		 0.350 (8.89) max. 0.150
(3.81)		 0.020
(0.51)
±
0.010
(0.25)		 500 V 0.047 µF 0.47 µF
1000 V 0.018 µF 0.01 µF
2000 V 3900 pF 0.022 µF
3000 V 1800 pF 8200 pF
4000 V 1000 pF 3900 pF
4018 0.400 (10.16)
±
0.020 (0.51)		 0.210 (5.33) max. 0.200
(5.59)		 0.020
(0.51)
±
0.010
(0.25)		 500 V 0.022 µF 0.15 µF
1000 V 0.012 µF 0.047 µF
2000 V 1200 pF 0.01 µF
3000 V 820 pF 3900 pF
4000 V 560 pF 2200 pF
4040 0.400 (10.16)
±
0.028 (0.71)		 0.400 (10.16)
±
0.028 (0.71)		 0.150
(3.81)		 0.020
(0.51)
±
0.010
(0.25)		 500 V 0.047 µF 0.47 µF
1000 V 0.022 µF 0.12 µF
2000 V 5600 pF 0.027 µF
3000 V 2200 pF 0.012 µF
4000 V 1000 pF 5600 pF
5000 V 680 pF 3900 pF
4540 0.450 (11.43)
±
0.032 (0.81)		 0.400 (10.16)
±
0.028
(0.71)		 0.150
(3.81)		 0.020
(0.51)
±
0.010
(0.25)		 500 V 0.068 µF 0.68 µF
1000 V 0.027 µF 0.15 µF
2000 V 6800 pF 0.039 µF
3000 V 2700 pF 0.015 µF
4000 V 1200 pF 6800 pF
5000 V 820 pF 4700 pF
4838 0.470 (11.94)
±
0.020 (0.51)		 0.430 (10.92) max. 0.220
(5.59)		 0.020
(0.51)
±
0.010
(0.25)		 500 V 0.056 µF 0.47 µF
1000 V 0.033 µF 0.15 µF
2000 V 5600 pF 0.027 µF
3000 V 3900 pF 0.012 µF
4000 V 1000 pF 4700 pF
5000 V 820 pF 3300 pF
5848 0.570 (14.48)
±
0.020 (0.50)		 0.530 (13.46) max. 0.220
(5.59)		 0.020
(0.51)
±
0.010
(0.25)		 500 V 0.1 µF 0.68 µF
1000 V 0.047 µF 0.22 µF
2000 V 0.01 µF 0.047 µF
3000 V 6800 pF 0.022 µF
4000 V 1800 pF 8200 pF
5000 V 15 pF 4700 pF
6860 0.670 (17.02)
±
0.020 (0.51)		 0.650 (16.51) max. 0.220
(5.59)		 0.020
(0.51)
±
0.010
(0.25)		 500 V 0.15 µF 1.0 µF
1000 V 0.068 µF 0.33 µF
2000 V 0.015 µF 0.068 µF
3000 V 0.01 µF 0.033 µF
4000 V 2700 pF 0.012 µF
5000 V 2200 pF 8200 pF

Dimensions

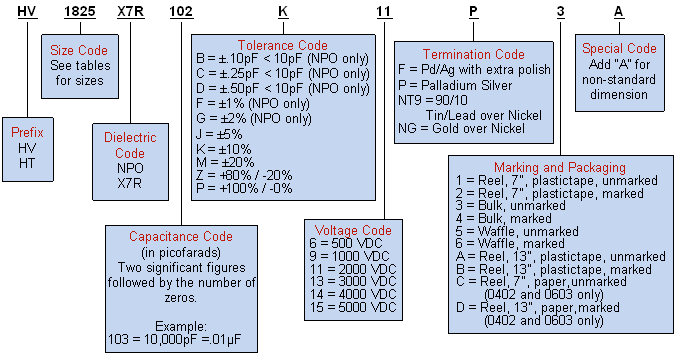

How To Order


Consult factory for other voltages, capacitance options and parts outside a given range.

The above example is of Presidio's Manufacturing part number.
If a shorter part number is desired, use our conversion tool to create our Global part number.
