High Reliability "HR" Capacitors

For applications where reliability, but not full military screening is required, Presidio recommends its high reliability “HR” capacitors. The “HR” code signifies use of the test program below, or the use of a customer Source Control Document (SCD) that includes voltage conditioning.

Quality Assurance Provisions
Every lot undergoes the following inspection and tests:

  • Voltage Conditioning: All parts receive a voltage conditioning at 2X rated voltage and 125°C for a minimum of 8 hours. An accelerated voltage conditioning, following MIL-PRF-55681 guidelines, may be used at Presidio’s discretion.

  • Capacitance: All parts are tested at 25°C and 1VACRMS in accordance with Method 305 of MIL-STD-202.

  • Dissipation Factor (DF): Shall not exceed 2.5% for BX/X7R dielectric or 0.15% for BP/COG dielectric, or according to EIA/MIL standards.

  • Dielectric Withstanding Voltage (DWV): All parts are tested at 2.5X rated voltage in accordance with Method 301 of MIL-STD-202, or according to EIA/MIL Standards.

  • Insulation Resistance (IR @ 25°C): All parts are tested at 25°C and rated voltage in accordance with Method 302 of MIL-STD-202. The minimum IR required is 100,000 megohms or 1,000 megohm-microfarads.

  • Visual: Performed on pieces in accordance with Presidio internal workmanship criteria.

  • Mechanical: Level 1 AQL 1% in accordance with Presidio's catalog.

  • Element Evaluation (optional): A MIL-PRF-38534 Appendix C Passive Element Class H element evaluation is available where the customer requires this testing. Element evaluation is not required on each lot, and must be specified on the purchase order.

Certificate of Compliance:

  • A Certificate of Compliance will be sent with each shipment.
Size L
inches (mm)		 W
inches
(mm)		 Thickness Max. (T) inches (mm) Metallization Band (M.B.) inches (mm) WVDC Dielectric
NPO BX X7R Y5V
0402 0.040 (1.02)
±
0.004 (0.10)		 0.020 (0.51)
±
0.004 (0.10)		 0.024
(0.61)		 0.004 (0.10) min band
0.015 (0.38) min space		 10 V 390 pF 6800 pF 0.012 µF 0.047 µF
16 V 200 pF 3300 pF 6800 pF 0.027 µF
25 V 120 pF 2200 pF 4700 pF 0.018 µF
50 V 100 pF 1800 pF 3900 pF 0.012 µF
100 V 39 pF 680 pF 1200 pF 5600 pF
0403 0.040 (1.02)
±
0.010 (0.25)		 0.030(0.76)
±
0.010 (0.25)		 0.030
(0.76)		 0.004 (0.10) min band
0.015 (0.38) min space		 10 V 1200 pF 0.020 µF 0.047 µF 0.12 µF
16 V 560 pF 0.012 µF 0.022 µF 0.068 µF
25 V 390 pF 6800 pF 0.015 µF 0.047 µF
50 V 330 pF 5600 pF 0.012 µF 0.033 µF
100 V 68 pF 1000 pF 2200 pF 6800 pF
0504 0.050(1.27)
±
0.010 (0.25)		 0.040 (1.02)
±
0.010(0.25)		 0.040
(1.02)		 0.005 (0.13) min band
0.015 (0.38) min space		 10 V 2700 pF 0.068 µF 0.12 µF 0.39 µF
16 V 1800 pF 0.039 µF 0.082 µF 0.22 µF
25 V 1500 pF 0.027 µF 0.047 µF 0.12 µF
50 V 1200 pF 0.020 µF 0.039 µF 0.082 µF
100 V 180 pF 2700 pF 6800 pF 0.018 µF
0603 0.063(1.60)
±
0.006(0.15)		 0.032(0.81)
±
0.006(0.15)		 0.035
(0.89)		 0.005 (0.13) min band
0.025(0.64) min space		 10 V 2200 pF 0.039 µF 0.10 µF 0.22 µF
16 V 1000 pF 0.020 µF 0.043 µF 0.12 µF
25 V 680 pF 0.015 µF 0.027 µF 0.082 µF
50 V 560 pF 0.010 µF 0.022 µF 0.056 µF
100 V 100 pF 1800 pF 3300 pF 0.010 µF
0805 0.080(2.03)
±
0.010 (0.25)		 0.050(1.27)
±
0.010 (0.25)		 0.050
(1.27)		 0.020
(0.51)
±
0.010
(0.25)		 10 V 4700 pF 0.1 µF 0.22 µF 0.68 µF
16 V 3300 pF 0.075 µF 0.15 µF 0.47 µF
25 V 2700 pF 0.047 µF 0.10 µF 0.27 µF
50 V 2200 pF 0.039 µF 0.10 µF 0.18 µF
100 V 560 pF 8200 pF 0.022 µF 0.056 µF
1206 0.126(3.20)
±
0.008(0.20)		 0.063(1.60)
±
0.008(0.20)		 0.059
(1.50)		 0.020
(0.51)
±
0.010
(0.25)		 10 V 0.012 µF 0.25 µF 0.56 µF 1.8 µF
16 V 8200 pF 0.2 µF 0.39 µF 1.2 µF
25 V 6800 pF 0.15 µF 0.27 µF 0.82 µF
50 V 5600 pF 0.1 µF 0.22 µF 0.56 µF
100 V 1500 pF 0.027 µF 0.068 µF 0.18 µF
200 V 820 pF 0.012 µF 0.027 µF
1209 0.125(3.18)
±
0.010(0.25)		 0.095(2.41)
±
0.010 (0.25)		 0.065
(1.65)		 0.020
(0.51)
±
0.010
(0.25)		 10 V 0.018 µF 0.39 µF 1.0 µF 2.5 µF
16 V 0.012 µF 0.27 µF 0.68 µF 1.8 µF
25 V 0.010 µF 0.22 µF 0.47 µF 1.5 µF
50 V 8200 pF 0.18 µF 0.39 µF 1.2 µF
100 V 3900 pF 0.068 µF 0.15 µF 0.47 µF
200 V 1800 pF 0.033 µF 0.068 µF
1712 0.175(4.45)
±
0.013(0.33)		 0.125(3.18)
±
0.010(0.25)		 0.065
(1.65)		 0.020
(0.51)
±
0.010
(0.25)		 10 V 0.039 µF 0.82 µF 1.8 µF 5.6 µF
16 V 0.027 µF 0.56 µF 1.2 µF 3.9 µF
25 V 0.022 µF 0.47 µF 1.0 µF 2.7 µF
50 V 0.015 µF 0.27 µF 0.68 µF 1.8 µF
100 V 6800 pF 0.12 µF 0.27 µF 0.82 µF
200 V 3300 pF 0.056 µF 0.12 µF
1725 0.175(4.45)
±
0.013(0.33)		 0.250(6.35)
±
0.018(0.46)		 0.065
(1.65)		 0.020
(0.51)
±
0.010
(0.25)		 10 V 0.082 µF 2.0 µF 3.9 µF 12.0 µF
16 V 0.068 µF 1.5 µF 3.3 µF 8.2 µF
25 V 0.056 µF 1.2 µF 2.2 µF 6.8 µF
50 V 0.039 µF 0.82 µF 1.8 µF 4.7 µF
100 V 0.018 µF 0.33 µF 0.68 µF 2.0 µF
200 V 8200 pF 0.12 µF 0.27 µF
2225 0.220(5.59)
±
0.015(0.38)		 0.250(6.35)
±
0.018(0.46)		 0.080
(2.03)		 0.020
(0.51)
±
0.010
(0.25)		 10 V 0.10 µF 2.2 µF 4.7 µF 15.0 µF
16 V 0.082 µF 1.8 µF 3.9 µF 12.0 µF
25 V 0.068 µF 1.5 µF 3.3 µF 10.0 µF
50 V 0.056 µF 1.0 µF 2.2 µF 6.8 µF
100 V 0.027 µF 0.47 µF 1.0 µF 2.7 µF
200 V 0.012 µF 0.22 µF 0.47 µF

Dimensions

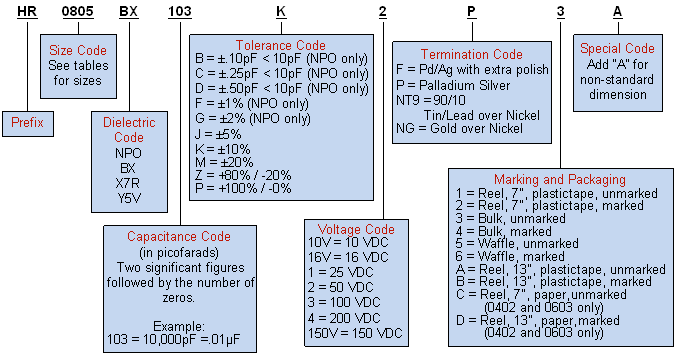

How To Order


Consult factory for other voltages, capacitance options and parts outside a given range.

The above example is of Presidio's Manufacturing part number.
If a shorter part number is desired, use our conversion tool to create our Global part number.
