High Reliability Extended Range Capacitors for Space

(Formerly the Presidio Components, Inc. "#M123" drawing)

For space flight applications that require the highest level of reliability, Presidio recommends its high reliability extended range chip capacitors. Tested to the requirements of MIL-PRF-123, Presidio manufactures these chips on the same manufacturing line as its military products. Please note these capacitors are NOT MIL-qualified. Unless noted in the data sheet, the parts do meet the MIL-PRF-123 design requirements for dielectric thickness and electrode composition. All parts are manufactured with PRECIOUS METAL ELECTRODES.

Quality Assurance Provisions
Every lot undergoes the following inspection and tests:

Destructive Physical Analysis (DPA): A representative sample is pulled from each lot and examined per EIA RS469 and to verify adherence to Presidio’s design criteria. Sample size is per MIL-PRF-123.
Ultrasonic Scanning Sample: This screening sample will be performed on lots to assure the highest quality microstructure. 100% ultrasonic scanning is not required for each lot, and must be specified on the customer order. Separate charge applies for 100% ultrasonic scanning.
Thermal Shock: All parts are temperature cycled for 20 cycles to MIL-STD-202 Method 107, Condition A, except that max temperature is 125°C.
Voltage Conditioning: All parts receive a voltage conditioning at 2X rated voltage and 125°C for a minimum of 168 hours and a maximum of 264 hours. Voltage Conditioning may be terminated at any time between 168 and 264 hour time interval that failures are less than .1% or 1 piece during the last 48 hours of the test. Method follows MIL-PRF-123. Resistors, instead of fuses are acceptable.
Insulation Resistance (IR @ 125°C): All parts are tested at 125°C and Rated Voltage in accordance with Method 302 of MIL-STD-202. The minimum IR required is 10,000 Megohms or 100 Megohm-Microfarads.
Dielectric Withstanding Voltage (DWV): All parts are tested at 2.5X rated voltage in accordance with Method 301 of MIL-STD-202.
Insulation Resistance (IR @ 25°C): All parts are tested at 25°C and Rated Voltage in accordance with Method 302 of MIL-STD-202. The minimum IR required is 100,000 Megohms or 1,000 Megohm-Microfarads.
Capacitance: All parts are tested at 25°C and 1VACRMS in accordance with Method 305 of MIL-STD-202.
Dissipation Factor (DF): Shall not exceed .15% for NPO – all voltages, 3.5% for X7R at 16/25 volt rated and 2.5% for X7R at 50/100 volt rated.
Percent Defective Allowed (PDA): The cumulative PDA after Voltage Conditioning is 5%. Pieces rejected as out of tolerance for capacitance or visual screening will be removed from the lot but not counted in the PDA calculation.
Visual: A 100% inspection is performed IAW MIL-PRF-123 Appendix B.
Mechanical: Level 1 AQL 1% in accordance with MIL-PRF-123.
Thermal Shock and Life Test: A sample is pulled from each lot. 100 Thermal shock cycles are performed and Life Test is performed for 1000 hours at 2X rated voltage and 125°C. Sample size and method follows MIL-PRF-123. Group B required for flight parts. Parts for engineering models may be subject to lesser screening requirements.
Humidity, Steady State, Low Voltage: A sample of 12 pieces is pulled from each lot and tested per MIL-PRF-123. Group B required for flight parts. Parts for engineering models may be subject to lesser screening requirements.
Marking (Optional for sizes 0805 and larger only): Parts will not be marked unless marking is specified on the PO. If marking is specified, a color letter will be used per Presidio’s chip marking system.

Standard Packaging
Product will be packaged in individual waffle trays. Tape and reel option is available.

Data Package
Data will be sent with each shipment including:

Destructive Physical Analysis (DPA) Report
Certificate of Compliance
Group A & B Attribute Data Sheet
Life and Humidity Variables Data Sheet

Size	L inches (mm)	W inches (mm)	Thickness Max. (T) inches (mm)	Metallization Band (M.B.) inches (mm)	WVDC	Dielectric (Maximum Capacitance)
Size	L inches (mm)	W inches (mm)	Thickness Max. (T) inches (mm)	Metallization Band (M.B.) inches (mm)	WVDC	NPO		X7R
0402	0.040 (1.02) ± 0.004 (0.10)	0.020 (0.51) ± 0.004 (0.10)	0.024 (0.61)	0.004 (0.10) min band 0.015 (0.38) min space	5 V			0.010 µF	No
					10 V			8200 pF	No
					16 V			6800 pF	No
					25 V	120 pF	Yes	4700 pF	Yes
					50 V	100 pF	Yes	3900 pF	Yes
					100 V	39 pF	Yes	1200 pF	Yes
0403	0.040 (1.02) ± 0.010 (0.25)	0.030(0.76) ± 0.010 (0.25)	0.030 (0.76)	0.004 (0.10) min band 0.015 (0.38) min space	16 V			0.022 µF	No
					25 V	390 pF	Yes	0.015 µF	Yes
					50 V	330 pF	Yes	0.012 µF	Yes
					100 V	68 pF	Yes	2200 pF	Yes
0504	0.050(1.27) ± 0.010 (0.25)	0.040 (1.02) ± 0.010(0.25)	0.040 (1.02)	0.005 (0.13) min band 0.015 (0.38) min space	16 V			0.082 µF	No
					25 V	1500 pF	Yes	0.047 µF	Yes
					50 V	1200 pF	Yes	0.039 µF	Yes
					100 V	180 pF	Yes	6800 pF	Yes
Low Inductance 0306	0.032(0.81) ± 0.006(0.15)	0.063(1.60) ± 0.006(0.15)	0.024 (0.61)	0.005 (0.13) min band 0.010(0.25) min space	5 V			0.100 µF	No
					16 V			0.039 µF	No
					25 V			0.022 µF	Yes
0603	0.063(1.60) ± 0.006(0.15)	0.032(0.81) ± 0.006(0.15)	0.035 (0.89)	0.005 (0.13) min band 0.025(0.64) min space	5 V			0.010 µF	No
					16 V			0.043 µF	No
					25 V	680 pF	Yes	0.027 µF	Yes
					50 V	560 pF	Yes	0.022 µF	Yes
					100 V	100 pF	Yes	3300 pF	Yes
Low Inductance 0508	0.050(1.27) ± 0.010(0.25)	0.080(2.03) ± 0.010(0.25)	0.030 (0.76)	0.005 (0.13) min band 0.020(0.51) min space	10 V			0.120 µF	No
					16 V			0.100 µF	No
					25 V			0.047 µF	Yes
0805	0.080(2.03) ± 0.010 (0.25)	0.050(1.27) ± 0.010 (0.25)	0.050 (1.27)	0.020 (0.51) ± 0.010 (0.25)	16 V			0.150 µF	No
					25 V	2700 pF	Yes	0.100 µF	Yes
					50 V	2200 pF	Yes	0.082 µF	Yes
					100 V	560 pF	Yes	0.022 µF	Yes
Low Inductance 0612	0.063(1.60) ± 0.010(0.25)	0.126(3.20) ± 0.010(0.25)	0.040 (1.02)	0.005 (0.13) min band 0.025(0.64) min space	16 V			0.270 µF	No
Low Inductance 0612	0.063(1.60) ± 0.010(0.25)	0.126(3.20) ± 0.010(0.25)	0.040 (1.02)	0.005 (0.13) min band 0.025(0.64) min space	25 V			0.220 µF	Yes
1206	0.126(3.20) ± 0.008(0.20)	0.063(1.60) ± 0.008(0.20)	0.059 (1.50)	0.020 (0.51) ± 0.010 (0.25)	16 V			0.390 µF	No
					25 V	6800 pF	Yes	0.270 µF	Yes
					50 V	5600 pF	Yes	0.220 µF	Yes
					100 V	1500 pF	Yes	0.068 µF	Yes
1209	0.125(3.18) ± 0.010(0.25)	0.095(2.41) ± 0.010 (0.25)	0.065 (1.65)	0.020 (0.51) ± 0.010 (0.25)	16 V			0.680 µF	No
					25 V	0.010 µF	Yes	0.470 µF	Yes
					50 V	8200 pF	Yes	0.390 µF	Yes
					100 V	3900 pF	Yes	0.150 µF	Yes
Low Inductance 0912	0.095(2.41) ± 0.010(0.25)	0.126(3.20) ± 0.010(0.25)	0.055 (1.40)	0.005 (0.13) min band 0.025(0.64) min space	16 V			0.680 µF	No
Low Inductance 0912	0.095(2.41) ± 0.010(0.25)	0.126(3.20) ± 0.010(0.25)	0.055 (1.40)	0.005 (0.13) min band 0.025(0.64) min space	25 V			0.470 µF	Yes
1712	0.175(4.45) ± 0.013(0.33)	0.125(3.18) ± 0.010(0.25)	0.065 (1.65)	0.020 (0.51) ± 0.010 (0.25)	16 V			1.200 µF	No
					25 V	0.022 µF	Yes	1.000 µF	Yes
					50 V	0.015 µF	Yes	0.680 µF	Yes
					100 V	6800 pF	Yes	0.270 µF	Yes
1725	0.175(4.45) ± 0.013(0.33)	0.250(6.35) ± 0.018(0.46)	0.065 (1.65)	0.020 (0.51) ± 0.010 (0.25)	16 V			3.300 µF	No
					25 V	0.056 µF	Yes	2.200 µF	Yes
					50 V	0.039 µF	Yes	1.800 µF	Yes
					100 V	0.018 µF	Yes	0.680 µF	Yes
2225	0.220(5.59) ± 0.015(0.38)	0.250(6.35) ± 0.018(0.46)	0.080 (2.03)	0.020 (0.51) ± 0.010 (0.25)	16 V			3.900 µF	No
					25 V	0.068 µF	Yes	3.300 µF	Yes
					50 V	0.056 µF	Yes	2.200 µF	Yes
					100 V	0.027 µF	Yes	1.000 µF	Yes
MIL-PRF-123 Minimum Dielectric Thickness: 0.8 mils for 50 V, 1.0 mils for 100 V

Dimensions

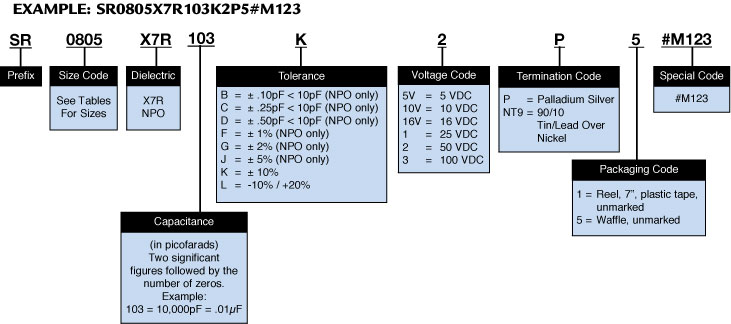

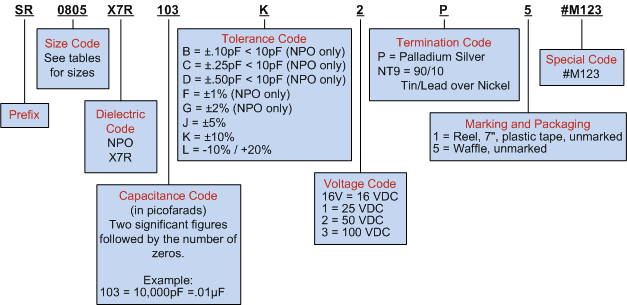

How To Order

Consult factory for other voltages, capacitance options and parts outside a given range.

The above example is of Presidio's Manufacturing part number.
If a shorter part number is desired, use our conversion tool to create our Global part number.
