Commercial Capacitors

Presidio provides high quality ceramic capacitors for a wide variety of commercial applications. Every component must pass the test criteria listed below.

Quality Assurance Provisions
Every lot undergoes the following inspection and tests:

  • Capacitance: All parts are tested at 25°C and 1VACRMS in accordance with method 305 of MIL-STD 202. Y5V and low voltage parts follow EIA guidelines.

  • Dissipation Factor (DF):
    Voltage Rating NPO BX X7R Y5V
    10 N/A 2.5% 5% 10%
    16 / 25 .15% 2.5% 3.5% 7%
    ≥ 50 .15% 2.5% 2.5% 5%

  • Dielectric Withstanding Voltage (DWV): All parts are tested to EIA/MIL standards.

  • Insulation Resistance (IR @ 25°C): All parts are tested at 25°C and rated voltage in accordance with method 302 of MIL-STD-202. The minimum IR required is 100,000 megohms or 1,000 megohm-microfarads.

  • Visual: Performed on pieces in accordance with Presidio internal workmanship criteria.

  • Mechanical: Level 1 AQL 1% in accordance with Presidio's catalog.

  • Operating Temperature Range: -55°C to +125°C
Size L
inches
(mm)		 W
inches
(mm)		 Thickness Max. (T)
inches (mm)		 Metallization Band (M.B.)
inches (mm)		 WVDC Dielectric
NPO BX X7R Y5V
0402 0.040 (1.02)
±
0.004 (0.10)		 0.020 (0.51)
±
0.004 (0.10)		 0.024
(0.61)		 0.004 (0.10)
min band
0.015 (0.38)
min space		 10 V 390 pF 6800 pF 0.012 µF 0.047 µF
16 V 200 pF 3300 pF 6800 pF 0.027 µF
25 V 120 pF 2200 pF 4700 pF 0.018 µF
50 V 100 pF 1800 pF 3900 pF 0.012 µF
100 V 39 pF 680 pF 1200 pF 5600 pF
0403 0.040 (1.02)
±
0.010 (0.25)		 0.030(0.76)
±
0.010 (0.25)		 0.030
(0.76)		 0.004 (0.10)
min band
0.015 (0.38)
min space		 10 V 1200 pF 0.020 µF 0.047 µF 0.12 µF
16 V 560 pF 0.012 µF 0.022 µF 0.068 µF
25 V 390 pF 6800 pF 0.015 µF 0.047 µF
50 V 330 pF 5600 pF 0.012 µF 0.033 µF
100 V 68 pF 1000 pF 2200 pF 6800 pF
0504 0.050(1.27)
±
0.010 (0.25)		 0.040 (1.02)
±
0.010(0.25)		 0.040
(1.02)		 0.005 (0.13)
min band
0.015 (0.38)
min space		 10 V 2700 pF 0.068 µF 0.12 µF 0.39 µF
16 V 1800 pF 0.039 µF 0.082 µF 0.22 µF
25 V 1500 pF 0.027 µF 0.047 µF 0.12 µF
50 V 1200 pF 0.020 µF 0.039 µF 0.082 µF
100 V 180 pF 2700 pF 6800 pF 0.018 µF
0603 0.063(1.60)
±
0.006(0.15)		 0.032(0.81)
±
0.006(0.15)		 0.035
(0.89)		 0.005 (0.13)
min band
0.025(0.64)
min space		 10 V 2200 pF 0.039 µF 0.10 µF 0.22 µF
16 V 1000 pF 0.020 µF 0.043 µF 0.12 µF
25 V 680 pF 0.015 µF 0.027 µF 0.082 µF
50 V 560 pF 0.010 µF 0.022 µF 0.056 µF
100 V 100 pF 1800 pF 3300 pF 0.010 µF
0805 0.080(2.03)
±
0.010 (0.25)		 0.050(1.27)
±
0.010 (0.25)		 0.050
(1.27)		 0.020
(0.51)
±
0.010
(0.25)		 10 V 4700 pF 0.1 µF 0.22 µF 0.68 µF
16 V 3300 pF 0.075 µF 0.15 µF 0.47 µF
25 V 2700 pF 0.047 µF 0.10 µF 0.27 µF
50 V 2200 pF 0.039 µF 0.10 µF 0.18 µF
100 V 560 pF 8200 pF 0.022 µF 0.056 µF
1206 0.126(3.20)
±
0.008(0.20)		 0.063(1.60)
±
0.008(0.20)		 0.059
(1.50)		 0.020
(0.51)
±
0.010
(0.25)		 10 V 0.012 µF 0.25 µF 0.56 µF 1.8 µF
16 V 8200 pF 0.2 µF 0.39 µF 1.2 µF
25 V 6800 pF 0.15 µF 0.27 µF 0.82 µF
50 V 5600 pF 0.1 µF 0.22 µF 0.56 µF
100 V 1500 pF 0.027 µF 0.068 µF 0.18 µF
200 V 820 pF 0.012 µF 0.027 µF
1209 0.125(3.18)
±
0.010(0.25)		 0.095(2.41)
±
0.010 (0.25)		 0.065
(1.65)		 0.020
(0.51)
±
0.010
(0.25)		 10 V 0.018 µF 0.39 µF 1.0 µF 2.5 µF
16 V 0.012 µF 0.27 µF 0.68 µF 1.8 µF
25 V 0.010 µF 0.22 µF 0.47 µF 1.5 µF
50 V 8200 pF 0.18 µF 0.39 µF 1.2 µF
100 V 3900 pF 0.068 µF 0.15 µF 0.47 µF
200 V 1800 pF 0.033 µF 0.068 µF
1712 0.175(4.45)
±
0.013(0.33)		 0.125(3.18)
±
0.010(0.25)		 0.065
(1.65)		 0.020
(0.51)
±
0.010
(0.25)		 10 V 0.039 µF 0.82 µF 1.8 µF 5.6 µF
16 V 0.027 µF 0.56 µF 1.2 µF 3.9 µF
25 V 0.022 µF 0.47 µF 1.0 µF 2.7 µF
50 V 0.015 µF 0.27 µF 0.68 µF 1.8 µF
100 V 6800 pF 0.12 µF 0.27 µF 0.82 µF
200 V 3300 pF 0.056 µF 0.12 µF
1725 0.175(4.45)
±
0.013(0.33)		 0.250(6.35)
±
0.018(0.46)		 0.065
(1.65)		 0.020
(0.51)
±
0.010
(0.25)		 10 V 0.082 µF 2.0 µF 3.9 µF 12.0 µF
16 V 0.068 µF 1.5 µF 3.3 µF 8.2 µF
25 V 0.056 µF 1.2 µF 2.2 µF 6.8 µF
50 V 0.039 µF 0.82 µF 1.8 µF 4.7 µF
100 V 0.018 µF 0.33 µF 0.68 µF 2.0 µF
200 V 8200 pF 0.12 µF 0.27 µF
2225 0.220(5.59)
±
0.015(0.38)		 0.250(6.35)
±
0.018(0.46)		 0.080
(2.03)		 0.020
(0.51)
±
0.010
(0.25)		 10 V 0.10 µF 2.2 µF 4.7 µF 15.0 µF
16 V 0.082 µF 1.8 µF 3.9 µF 12.0 µF
25 V 0.068 µF 1.5 µF 3.3 µF 10.0 µF
50 V 0.056 µF 1.0 µF 2.2 µF 6.8 µF
100 V 0.027 µF 0.47 µF 1.0 µF 2.7 µF
200 V 0.012 µF 0.22 µF 0.47 µF

Dimensions

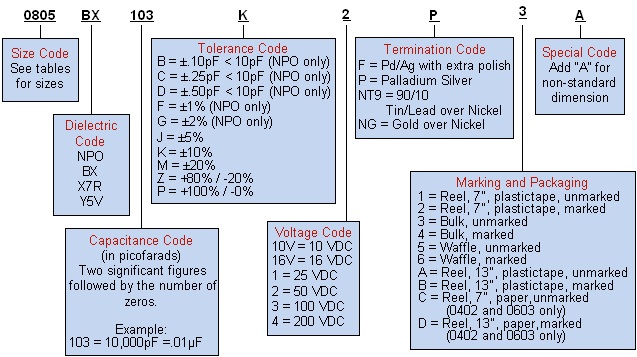

How To Order


Consult factory for other voltages, capacitance options and parts outside a given range.

The above example is of Presidio's Manufacturing part number.
If a shorter part number is desired, use our conversion tool to create our Global part number.
