Insertion Loss Data

Component:

Global Part Number:

BB0502X7R104M16V820

MBB0502X104MGP5N8-

Measurement performed from 0.500~15GHz

Calibration Type:

Calibration Standard:

VNA:

Test Fixture:

TRL

ICM TRL-1004A

HP 8510C

ICM 7mm Series Thru

Measurement performed from 30kHz~0.5GHz:

Calibration Type:

Calibration Standard:

VNA:

Test Fixture:

SOLT

ICM TRL-1004A

HP 8753

ICM 7mm Series Thru

Capacitor Measurements for 1~100 MHz:

Figure 1 - Effective Series Resistance for Capacitor BB0502X7R104M16V820

Capacitor Measurements for 30 kHz~15GHz:

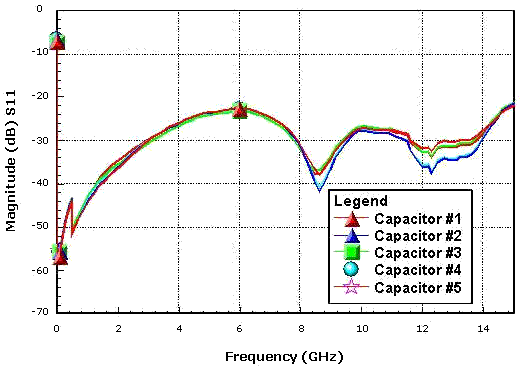

Figure 2 - Magnitude (dB) of S11 for Capacitor BB0502X7R104M16V820 (Linear)

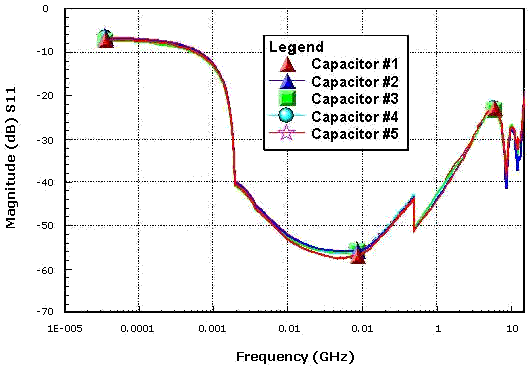

Figure 3 - Magnitude (dB) of S11 for Capacitor BB0502X7R104M16V820 (Log)

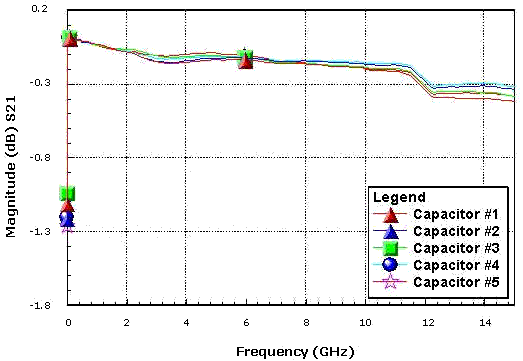

Figure 4 - Magnitude (dB) of S21 for Capacitor BB0502X7R104M16V820 (Linear)

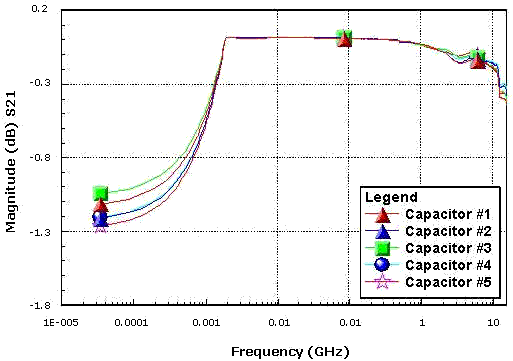

Figure 5 - Magnitude (dB) of S21 for Capacitor BB0502X7R104M16V820 (Log)

Figure 6 - Phase (degree) of S21 for Capacitor BB0502X7R104M16V820 (Linear)

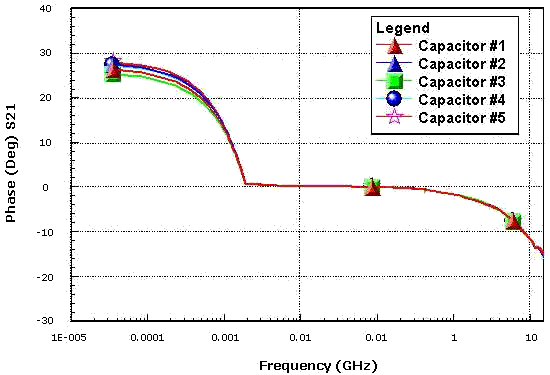

Figure 7 - Phase (degree) of S21 for Capacitor BB0502X7R104M16V820 (Log)
