Quick Select by Application and Resonant Free Bandwidth
Size Resonant Free Bandwidth** Typical Insertion Loss (S21)*** 2 Cap Values in Parallel (pF) Temp. Coeff. Working VDC FIT Calc. using cont. op. temp. @ Global Part Number

 Fiber Optic
0502 16 kHz to 40 GHz -0.2 dB at 10 GHz 100,000 & 82 ± 15% 16 VDC 85°C MBB0502X104MG_ _N8_*
0502 16 kHz to 40 GHz -0.2 dB at 10 GHz 100,000 & 82 ± 15% 20 VDC 65°C LBB0502X104MH_ _N8_*
0603 10 kHz to 20 GHz -0.45 dB at 10 GHz 150,000 & 220 ± 15% 16 VDC 85°C MBB0603X154MG_ _N2_*
0805 10 kHz to 20 GHz -0.5 dB at 10 GHz 150,000 & 220 ± 15% 16 VDC 85°C MBB0805X154MG_ _N2_*
0805 30 kHz to 20 GHz -0.6 dB at 10 GHz 56,000 & 220 ± 15% 75 VDC 85°C MBB0805X563ML_ _N2_*

 Microwave
0502 160 kHz to 40 GHz -0.3 dB at 10 GHz 10,000 & 82 ± 15% 75 VDC 85°C MBB0502X103ML_ _N8_*
0603 450 kHz to 30 GHz -0.5 dB at 10 GHz 4,000 & 220 ± 15% 50 VDC 85°C MBB0603X402M2_ _N2_*
0805 450 kHz to 20 GHz -0.5 dB at 10 GHz 4,000 & 220 ± 15% 50 VDC 85°C MBB0805X402M2_ _N2_*

 Test Instruments
0302 130 kHz to 100 GHz -1.2 dB at 100 GHz 12,000 & 82 ± 15% 16 VDC 85°C MBB0302X123MG_ _N8_*

 High Reliability Space
0502 160 kHz to 40 GHz -0.35 dB at 10 GHz 10,000 & 82 ± 15% 12 VDC 100°C SBB0502X103MF_ _N8_*

 RoHS Compliant
0502 16 kHz to 40 GHz -0.2 dB at 10 GHz 100,000 & 82 ± 15% 16 VDC 85°C MBB0502X104MG_ _R8_*
0502 16 kHz to 40 GHz -0.2 dB at 10 GHz 100,000 & 82 ± 15% 20 VDC 65°C LBB0502X104MH_ _R8_*
0502 24 kHz to 40 GHz -0.2 dB at 10 GHz 68,000 & 82 ± 15% 16 VDC 85°C MBB0502B683MG_ _R8_*
0502 24 kHz to 40 GHz -0.2 dB at 10 GHz 68,000 & 82 ± 15% 20 VDC 65°C LBB0502B683MH_ _R8_*

*

Insert codes for Termination, Packaging, and Design-In Code

 Consult factory for higher voltage ratings

**

-3.0 dB low frequency point



***

Average de-embedded data

Global Part Number Example

                   M    BB 0502  X     104       M         G          P        5        R         8           A

Testing Codes

Presidio Components' quality system is ISO 9001 compliant and approved to Mil-I-45208 and Mil-Std-790

Code

Description

L

Industrial Applications; FIT Calculation Using 65C Continuous Operating Temperature
Electrical: 100% capacitance, AQL Level II 1% per ANSI/ASQ Z1.4 for insulation resistance (IR) & dielectric withstanding voltage (DWV)
Visual: 100%, as per Mil-Std-883, Method 2032

M

Industrial Applications; FIT Calculation Using 85C Continuous Operating Temperature
Electrical: 100% capacitance, AQL Level II 1% per ANSI/ASQ Z1.4 for insulation resistance (IR) & dielectric withstanding voltage (DWV)
Visual: 100%, as per Mil-Std-883, Method 2032

S

High Reliability SR Capacitors
For more information please see our testing capabilities for high reliability "SR" capacitors

Dimensions



Inches
Size Ceramic Body Length
L		 Ceramic Body Width
W1		 Ceramic Body Height
T max.		 Band
Y max.		 Gap Between Surface Pads
CL		 Surface Pad Width
W2
0302 0.031 ± 0.003 0.020 ± 0.002 0.020 0.008 0.00425 ± 0.0015 0.010 ± 0.002
0502 0.050 ± 0.006 0.022 ± 0.004 0.038 0.010 0.005 ± 0.003 0.020 ± 0.002
0603 0.065 ± 0.006 0.032 ± 0.006 0.038 0.015 0.006 ± 0.004 0.023 ± 0.003
0805 0.080 ± 0.010 0.050 ± 0.010 0.038 0.020 0.006 ± 0.004 0.040 ± 0.003
0805* 0.080 ± 0.010 0.050 ± 0.010 0.038 0.020 0.004 ± 0.004 0.032 ± 0.005



Millimeters (reference only)
Size Ceramic Body Length
L		 Ceramic Body Width
W1		 Ceramic Body Height
T max.		 Band
Y max.		 Gap Between Surface Pads
CL		 Surface Pad Width
W2
0302 0.787 ± 0.076 0.508 ± 0.051 0.508 0.203 0.108 ± 0.038 0.254 ± 0.051
0502 1.270 ± 0.152 0.559 ± 0.102 0.965 0.254 0.127 ± 0.076 0.508 ± 0.051
0603 1.651 ± 0.152 0.813 ± 0.152 0.965 0.381 0.152 ± 0.102 0.584 ± 0.076
0805 2.032 ± 0.254 1.270 ± 0.254 0.965 0.508 0.152 ± 0.102 1.016 ± 0.076
0805* 2.032 ± 0.254 1.270 ± 0.254 0.965 0.508 0.102 ± 0.102 0.813 ± 0.127

* This dimension applies only to MBB0805X402M2_ _N2_

  Page Up.

Dielectric Material Code and Electrical Specifications

Material:

X7R

BX

Code:

X

B

Dissipation Factor:

4.0% max.

4.0% max.

Insulation Resistance at 25°C:

> 105 MΩ

> 105 MΩ

Dielectric Withstanding Voltage:

2.5 x WVDC

2.5 x WVDC

Working Voltage (WVDC):

See working voltage table

See working voltage table

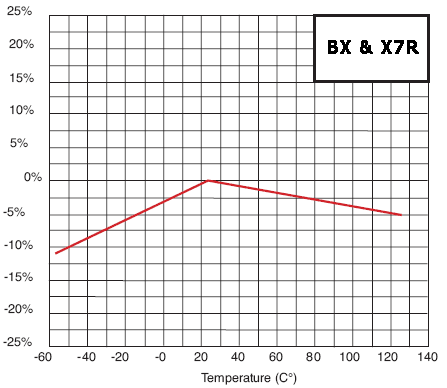

Temperature Coefficient over Operating Temperature:

± 15%

± 15%

Operating Temperature:

-55°C to +125°C

-55°C to +125°C

Aging Rate:

2.5% max. per decade/hour

2.5% max. per decade/hour

Capacitance Codes for Multilayer Capacitor

First two digits

=

Significant figures of capacitance in picofarads

Third digit

=

Additional number of zeros

Example:



100 = 10 pF





102 = 1,000 pF





104 = 100,000 pF

Product Code

Special Codes for Second Capacitor Value



BB

Buried Broadband Capacitor



Code

Nominal Capacitance













8

82 pF













2

220 pF



  Page Up.

Working Voltage Codes

Standard Capacitance Tolerance Code



Code

WVDC





Code

Tolerance





F

12





M

± 20%





G

16













H

20













1

25













2

50













L

75











Packaging Codes

RoHS Compliance Code



Code

Description





Code

Compliant





1

Tape and Reel





N

No





5

Waffle Pack





R

Yes



Termination Codes

Code

RoHS Compliant

Typical Application

Termination Build Up

Recommended Reflow Temperature

T

Yes

Solder Reflow

Palladium-Silver
Nickel Barrier
Plated 100% Tin

220°C to 260°C typical*

N

No

Solder Reflow by IR, vapor phase, wave, convection tunnel oven

Palladium-Silver
Nickel Barrier
Plated 90/10 Tin Lead

220°C to 260°C typical*

P

Yes

Conductive Epoxy
Non-Magnetic

Palladium-Silver

Cure Epoxy as per manufacturer's spec.

G

Yes

Conductive Epoxy, Wire Bondable.

Palladium-Silver
Nickel Barrier
100 µ" thick Gold typical

Cure Epoxy as per manufacturer's spec.



 * Typical temperature guidelines for solder attachment:

     Reflow:   Preheating -- 2°C/seconds up to 100 seconds
                 Soldering -- 220°C to 260°C for 20 to 60 seconds

     Gradual Cooling:    Exit less than 100°C
