Insertion Loss Data

Component:

Global Part Number:

Dielectric:

Capacitance:

Voltage:

Size:

Temperature Coefficient:

BB0805X7R154M16VP221

MBB0805X154MGP5N2-

X7R

150nF, 220pF

16VDC

0805

±15% (-55C, +125C)

Measured on 8 Mil. Rogers 4003 (50MHz-20GHz)

Line Width 17 Mils

Pad Width 38 Mils

Gap Width 22 Mils

The capacitors were mounted to pad stacks printed on 8-mil Rogers 4003 material (er=3.38). Series 2-port S-parameter measurements were made using a vector network analyzer that was calibrated to the outer edge of the pad stacks. Test fixture artifacts were removed from the initial S-parameter data by de-embedding the pad stack effects, and subsequently extracting stray capacitance to ground using a pi-network equivalent circuit. The presented data is thus nominally test-fixture independent. Presented below is both the de-embedded data and the de-embedded and extracted data.

Figure 1 - Average Magnitude De-embedded and extracted S11 (dB) of Capacitor: BB0805X7R154M16VP221 Lot: 011240-79A measured on 8mil Rogers 4003.

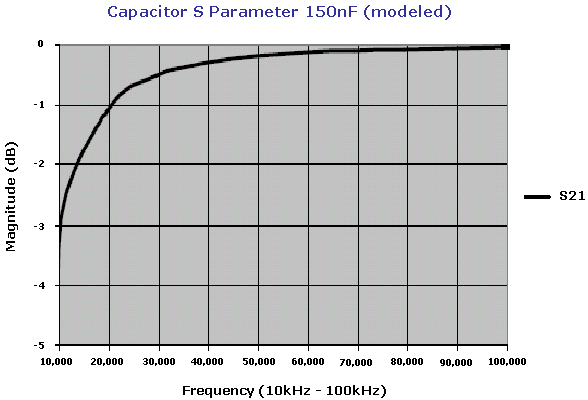

Figure 2 - Average Magnitude De-embedded and extracted S21 (dB) of Capacitor: BB0805X7R154M16VP221 Lot: 011240-79A measured on 8mil Rogers 4003.

Figure 3 - Magnitude De-embedded S11 (dB) of Capacitor: BB0805X7R154M16VP221 Lot: 011240-79A measured on 8mil Rogers 4003.

Figure 4 - Magnitude De-embedded S21 (dB) of Capacitor: BB0805X7R154M16VP221 Lot: 011240-79A measured on 8mil Rogers 4003.
