Electrical Characteristics |
|||
Rated Voltage: |
50 / 100 / 200 / 500 volts |
||
Temperature Coefficient: |
Dielectric Type |
Bias = 0 Volt |
Bias = Rated Voltage |
| BP all Voltages | ±30PPM | ±30PPM | |
| BX 50 / 100V | ±15% | +15, -25% | |
| BR 200V | ±15% | +15, -40% | |
| BQ 500V | ±15% | +15, -50% | |
Capacitance: Measured at 1.0 volt (open circuit) and 1KHz. |
|||
Capacitance Tolerance: J = ±5%, K = ±10%, M = ±20%. |
|||
Dissipation Factor: When tested at 1.0 volt (open circuit) and 1KHz, BP characteristic shall be .15% maximum and BX/BR/BQ characteristic shall be 2.5% maximum. |
|||
Dielectric Withstanding Voltage: Dielectric withstanding voltage shall be tested at 250% of rated voltage except for 500V rated parts which will be tested at 150% of rated voltage. |
|||
Insulation Resistance: |
|||
Performance Characteristics and Test Methods |
|||
Operating Temperature Range: The operating temperature range is -55°C to +125°C. |
|||
Thermal Shock: All parts are cycled between -55°C and +125°C, 5 times. |
|||
Voltage Conditioning: All parts are tested for 96 hours at 125°C and 200% of rated voltage except 500V rated parts are tested at 120% of rated voltage. The overall percent defective allowed (PDA) is 10%. |
|||
Solderability: Meets Mil-STD-202 and J-STD-001 requirements. |
|||
Resistance to Soldering Heat: Parts withstand 260°C for 10 seconds with no degradation in electrical performance or lead attachment. |
|||
Terminal Strength: Leads will withstand 5 pounds (4 pounds for case code 5) of applied force without rupturing. |
|||
Moisture Resistance: Every 3 months, parts are tested for 20 cycles at 90% RH and between -10°C to +65°C. Bias is applied during the first 10 cycles. |
|||
Life: Parts are tested for 1000 hours at +125°C and 200% of rated voltage except 500V rated parts shall be tested at 120% of rated voltage. |
|||
Barometric Pressure: Parts will operate at rated voltage (80% of rated voltage for 500 volt parts) at reduced pressure up to 100,000 feet. |
|||
Shock, Specified Pulse: Parts remain operational during and after impacts of 100 G's. |
|||
Vibration: Parts remain operational during and after operating in high vibration environments of up to 20 G's. |
|||
Marking: Marking shall be in accordance with Mil-STD-1285 and Mil-PRF-49470. Minimum marking will be "JB", manufacturer's code (PCI), capacitance and tolerance, and date code. Full marking will be included on the package. |
|||
Cage Code: Presidio Components, Inc. Cage Code is 60212. |
|||
Additional Requirements |
|||
Ultrasonic Imaging: All parts are imaged during in-process testing to remove voids and delaminations IAW EIA 469. |
|||
Destructive Physical Analysis: A sample of chips is examined prior to assembly for defects in the microstructure. As part of Group A, an additional sample is examined for cracks or assembly defects. |
|||
Thermal Shock: Prior to voltage conditioning, all parts are cycled between -55°C and +125°C, 20 times. Prior to life test sample pieces receive 100 cycles under conditions outlined above. |
|||
Voltage Conditioning: All parts are tested for 168 – 264 hours at 125°C and 200% of rated voltage except 500V rated parts are tested at 120% of rated voltage. The overall percent defective allowed (PDA) is 5% for case codes 4 and 5 and 8% for all other case codes. The PDA in the last 48 hours of voltage conditioning is .5% for case codes 4 and 5, and 1% for all other case codes, or 1 piece whichever is greater. |
|||
Life: For qualification, parts are tested for 4000 hours at +125°C and 200% of rated voltage except 500V rated parts shall be tested at 120% of rated voltage. For each lot, 12 pieces are tested for a 1000 hours under conditions outlined above. |
|||
Humidity, Steady State, Low Voltage: Six pieces are tested from each lot at 1.3 volts, 85% RH and 85°C, to ensure the absence of low voltage failure mechanisms. These mechanisms include microcracking. |
|||
Marking: Parts will be marked as M49470 parts except "JB" is replaced with "JT". |
|||

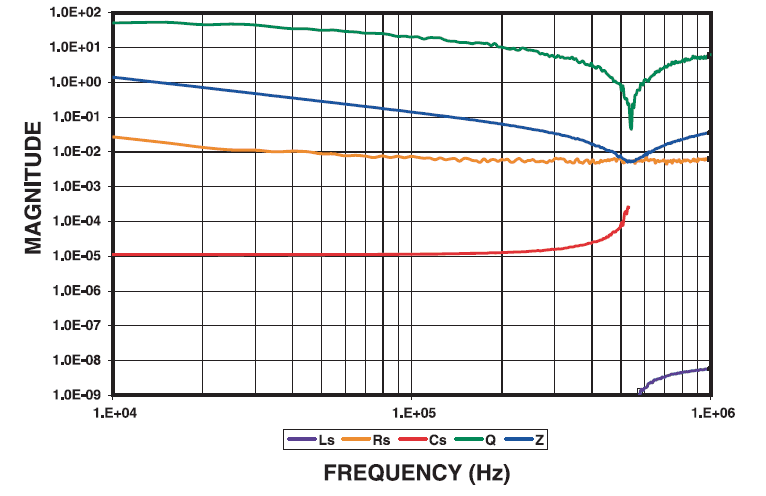

MIL-PRF-49470 Frequency Response Curves |
|||
10µF, 50 Volt M49470X01106_A_ |
|||
![]() |
|||
Visit our library of Power Supply Capacitors Frequency Response Curves. |
|||
|
|
|
|
